SPECIFICATIONS |
|
Product name: |

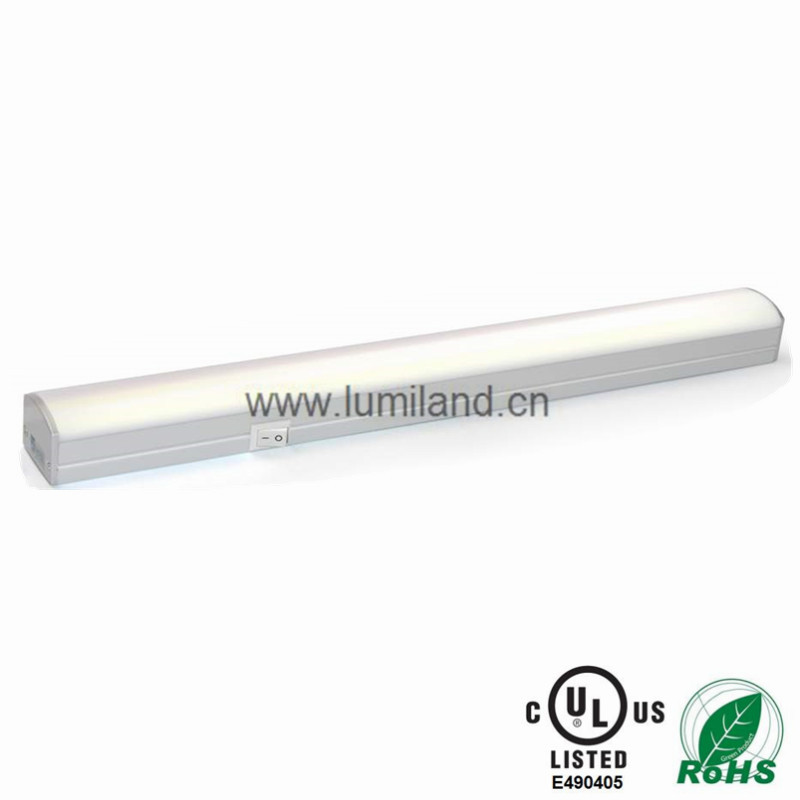

LED Linear Light |
Art. Number: |
20845 |
Manufacturer: |
LUMILAND |
Voltage: |
120V AC |
Beam Angle: |
120 Degree |
Color Rendering Index: |
>90 |
LED Color(s): |
Warm White /Neutral White/ Cool White |
CCT: |
3000K / 4000K/ 6000K |
Finish: |
Silver Grey |
IP rated: |
IP20 |
Certificate: |
UL |
LED Lifetime: |
30,000 Hours |
Cable: |

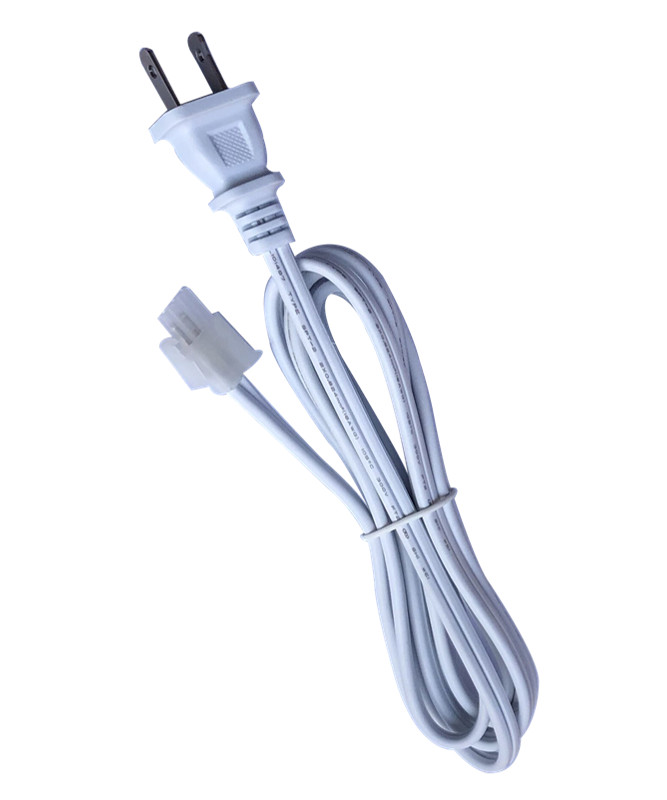

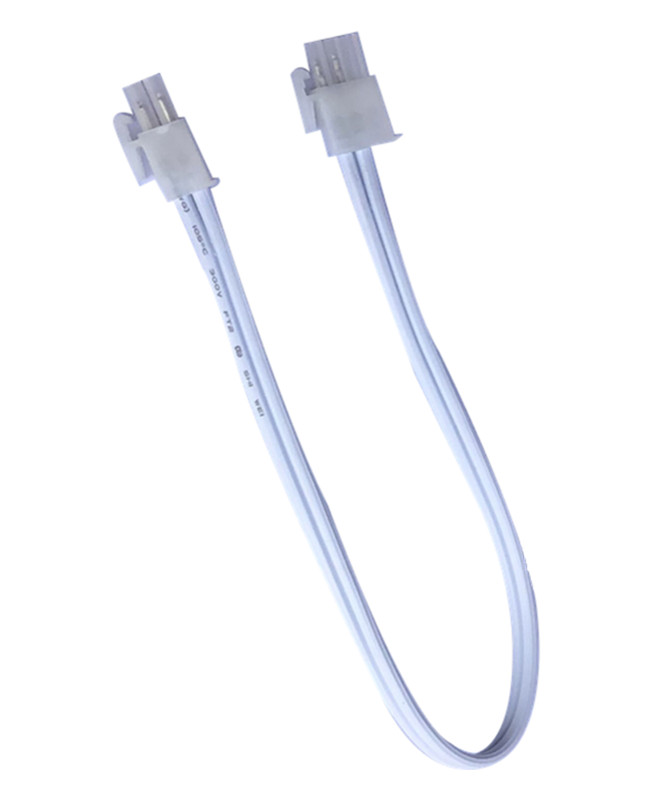

1pcs 1.8m18AWG SPT-2 UL cable(with on/off switch in the middle of cable) and US 2-pins plug + 1pcs 0.3m18AWG SPT-2 UL, one end with 2622-3P male plug, the other end with 2622-2P male plug |
Requires drivers: |
Yes |
Package Includes: |

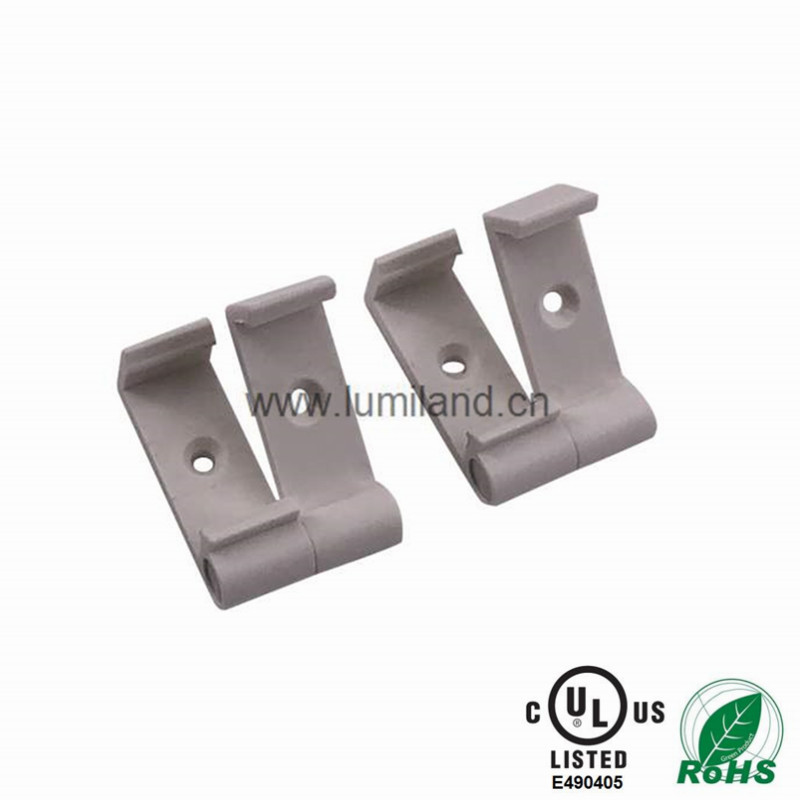

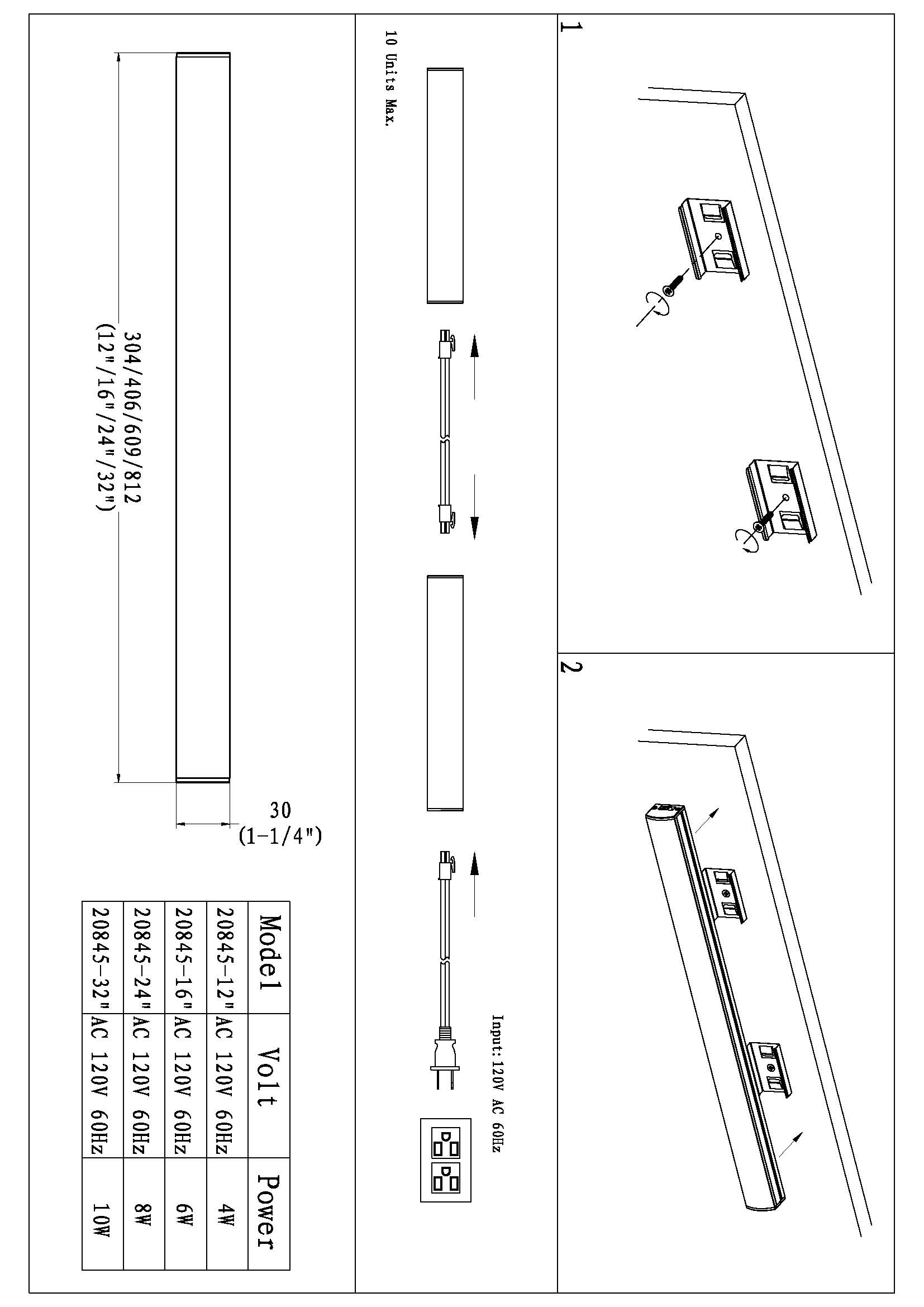

Screws and installation manual |
The linear LED cabinet light 20845 is available in 4 different lengths. The detailed specification are as below:
Art NO |
LED Quantity |
Wattage |
Luminous Flux |

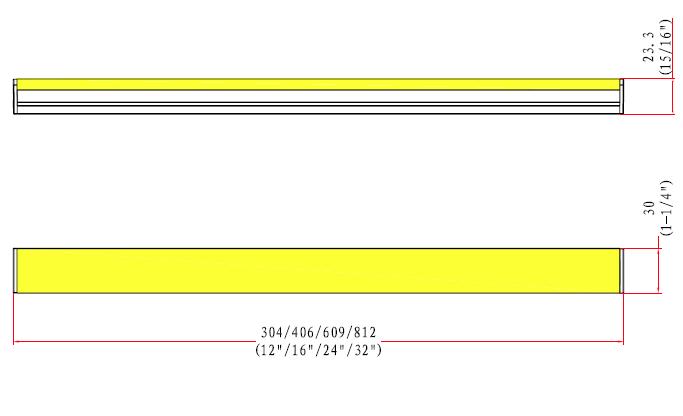

Size(mm) |
20845-304(12") |
40pcs 2835 LED |
5W |
300lm |
304x30xH23.3mm |
20845-406(16") |
64pcs 2835 LED |
7.5W |
450lm |
406x30xH23.3mm |
20845-609(24") |
80pcs 2835 LED |
10W |
600lm |
609x30xH23.3mm |
20845-812(32") |
120pcs 2835 LED |
12.5W |
750lm |
812x30xH23.3mm |
