20844: UL listed LED under cabinet light

Accessories
SPECIFICATIONS

SPECIFICATIONS

Product name:

LED Under Cabinet Light

Art. Number:

20844

Manufacturer:

LUMILAND

Voltage:

120V AC

Beam Angle:

120 Degree

Color Rendering Index:

>90

LED Color(s):

Warm White /Neutral White/ Cool White

CCT:

3000K / 4000K/ 6000K

Finish:

Black/White

IP rated:

IP20

Certificate:

UL

LED Lifetime:

30,000 Hours

Cable:

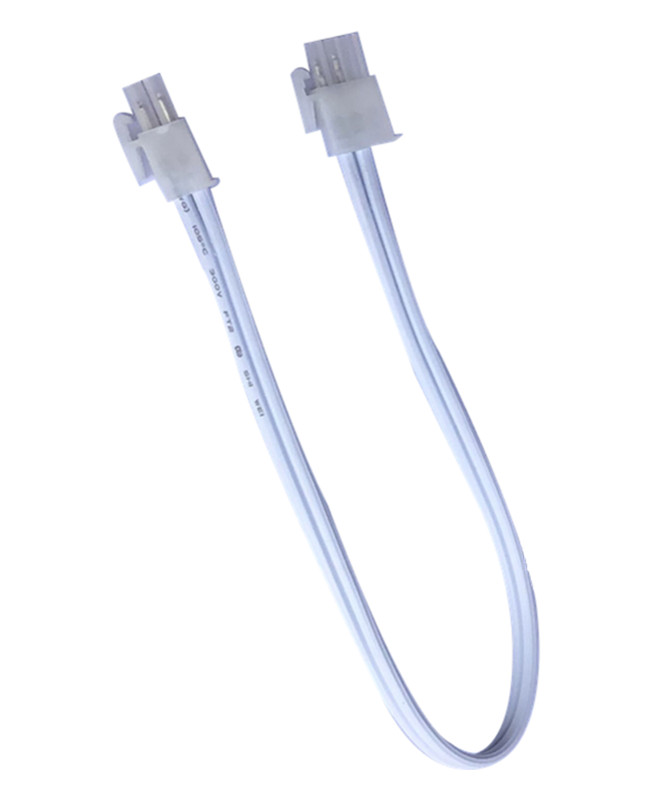

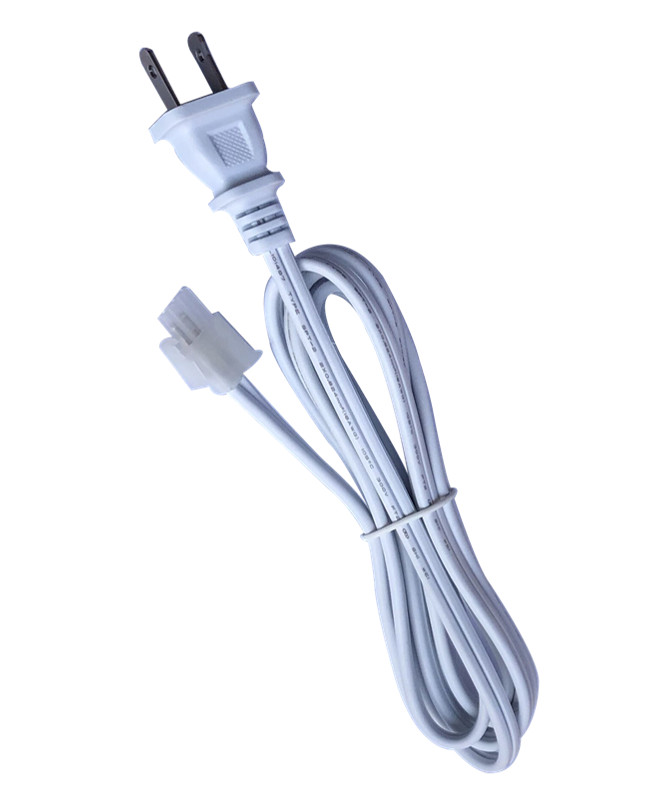

1pcs 1.8m18AWG SPT-2 UL cable and US 2-pins plug + 1pcs 0.3m18AWG SPT-2 UL, one end with 2622-3P male plug, the other end with 2622-2P male plug

Requires drivers:

Yes

Package Includes:

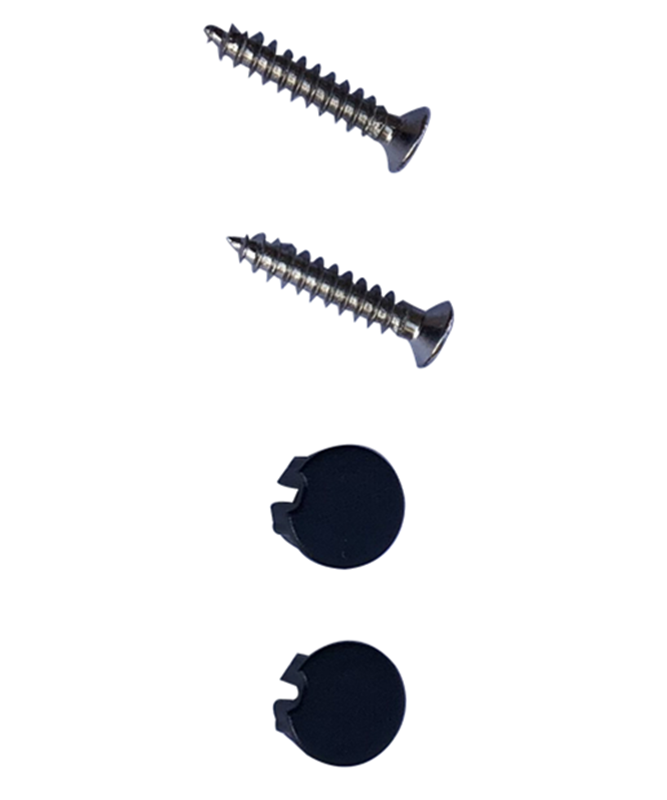

Screws and installation manual

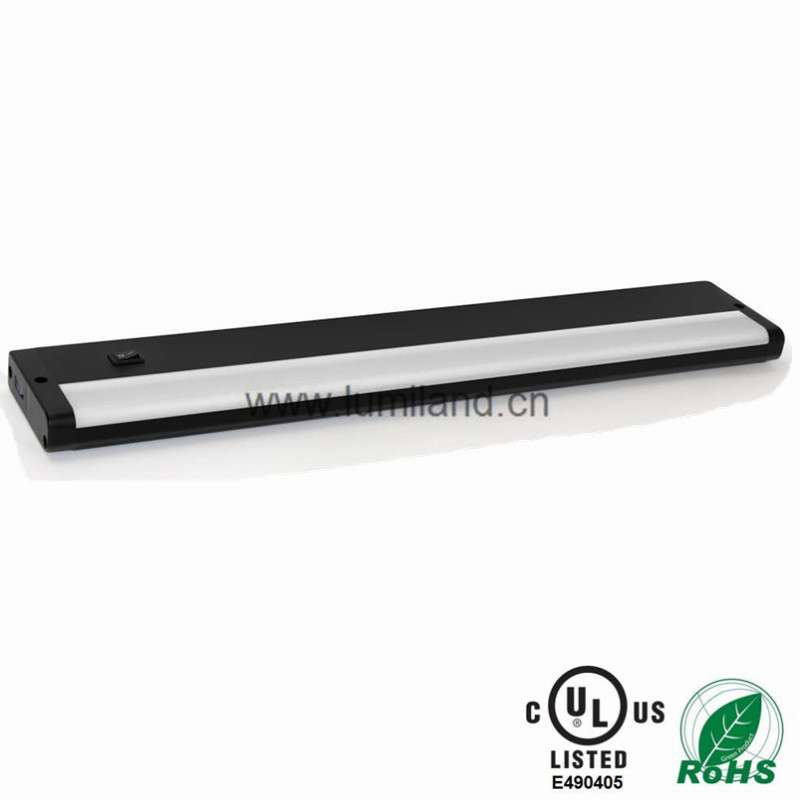

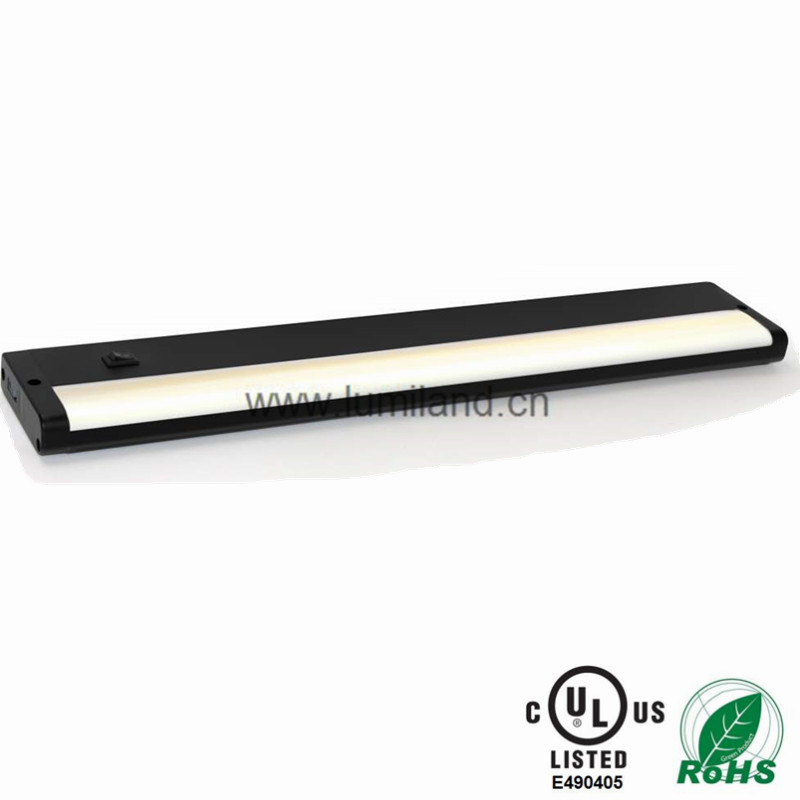

The linear LED cabinet light 20844 with built in on/off button switch.

It is available in 4 different lengths. The detailed specification are as below:

Art NO

LED Quantity

Wattage

Luminous Flux

Size(mm)

20844-304(12")

36pcs 2835 LED

6W

400lm

304x70xH20mm

20844-406(16")

48pcs 2835 LED

10W

670lm

406x70xH20mm

20844-609(24")

72pcs 2835 LED

15W

1000lm

609x70xH20mm

20844-812(32")

96pcs 2835 LED

20W

1350lm

812x70xH20mm

Application
