SPECIFICATIONS

Product name:

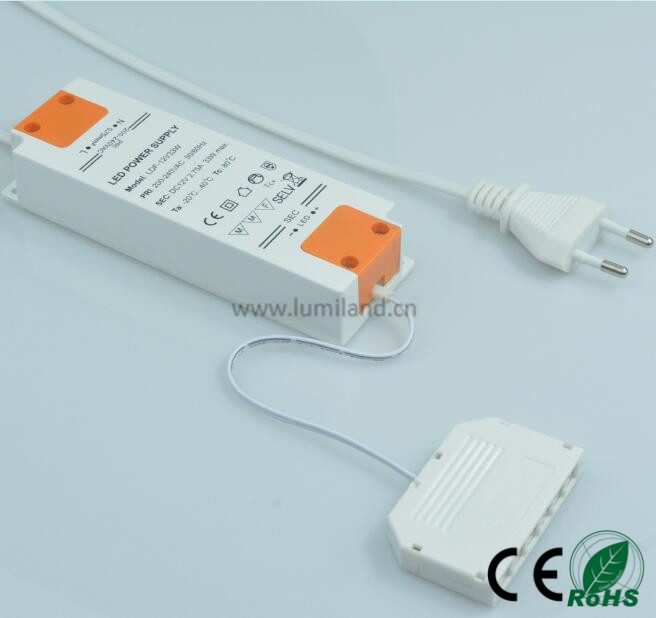

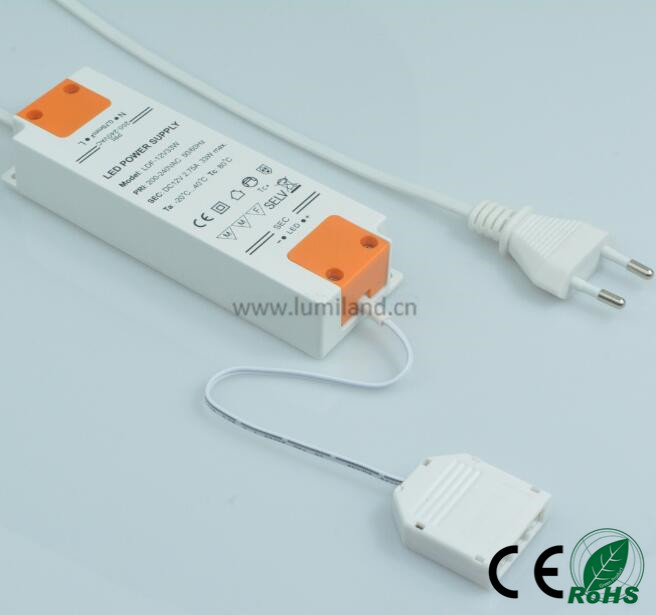

LED constant voltage driver

Art. Number:

LDF-12V33W/ LDF-24V33W

Input voltage:

200-240V ~ 50Hz

Output current:

2750mA/1380mA

Output voltage:

12V DC/24V DC

Power:

33W

Ambient Temperature:

-20°C~40°C

Case Temperature:

80°C

Insulation Class:

Class 2

Over temperature protection:

Yes

Short circuit protection:

Yes

Efficiency:

>75%

No load power consumption:

<0.3W

Power Factor:

>0.5

IP rated:

IP20

Dimension(L*W*H):

140x47x25mm

Certification:

CE/EMC/LVD/ROHS°C
