SPECIFICATIONS

Product name:

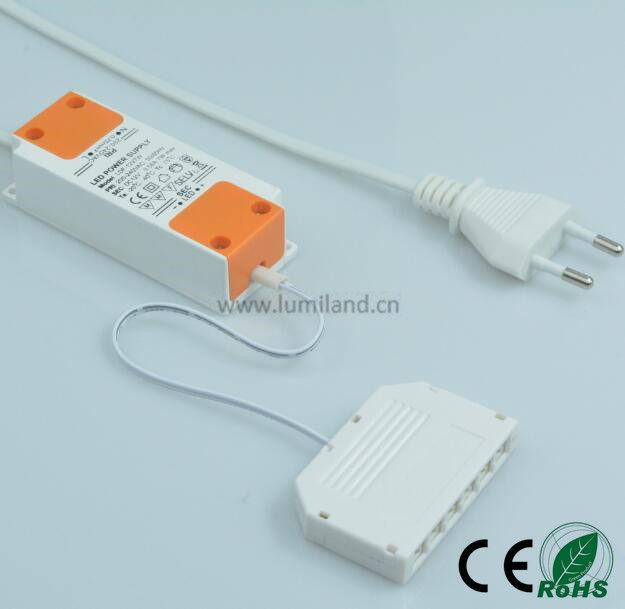

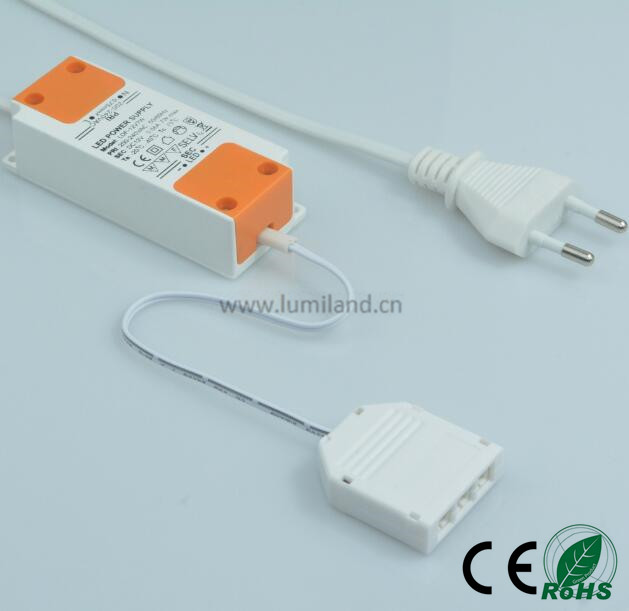

LED constant voltage driver

Art. Number:

LDF-12V7W/ LDF-24V7W

Input voltage:

200-240V ~ 50Hz

Output current:

580mA/290mA

Output voltage:

12V DC/24V DC

Power:

7W

Ambient Temperature:

20°C

Case Temperature:

75°C

Insulation Class:

Class 2

Over temperature protection:

Yes

Short circuit protection:

Yes

Efficiency:

>75%

No load power consumption:

<0.3W

Power Factor:

>0.5

IP rated:

IP20

Dimension(L*W*H):

86x35x21.5mm

Certification:

CE/EMC/LVD/ROHS
