LED Aluminum Profile Light 31231

Accessories
SPECIFICATIONS

SPECIFICATIONS

Product name:

LED Linear Strip Light

Art. Number:

31231 (Customized lengths)

Voltage:

12V DC

Wattage:

12W/m

LED QTY and Type:

120pcs 2835LED/m. Every 3pccs(25mm) can be cut.

Luminous Flux(lm)

720lm/m

Size: (mm)

L (customized)xW15.5xH11.2mm

Cutout:(mm)

(L-5) x W13xH11mm

Beam Angle:

120 Degree

Color Rendering Index:

>80

LED Color Temperature:

Warm White 3000K /Neutral White 4000K/ Cool White 6500K

Material:

Aluminum, PC

Finish:

Silver Grey

IP rated:

IP20

Certificate:

CE, RoHS

LED Lifetime:

30,000 Hours

Cable:

1.5m 24# AWG cable and 91505-MP

Requires drivers:

Yes

Sensor Mode:

/(the version with hand wave on/off sensor available)

Detection range:

/

Package Includes:

Installation bracket and 2pcs screws and installation manual

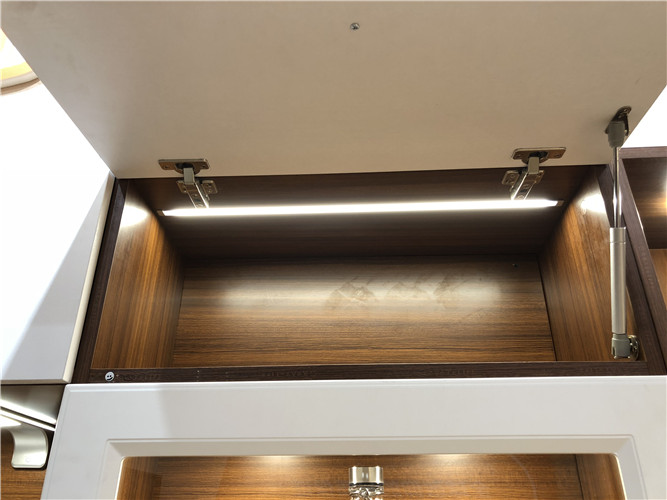

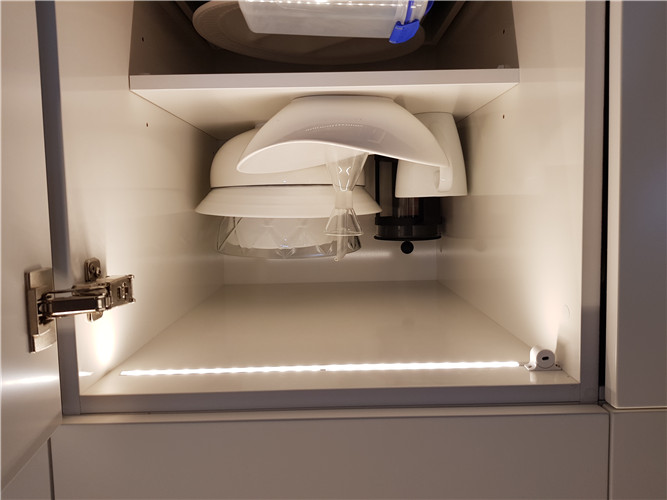

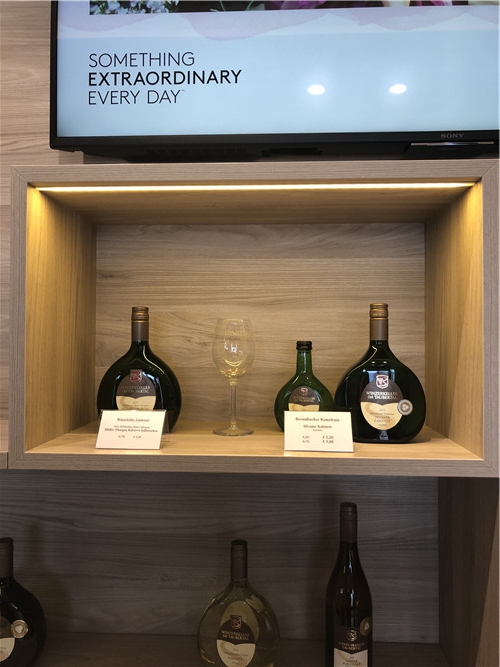

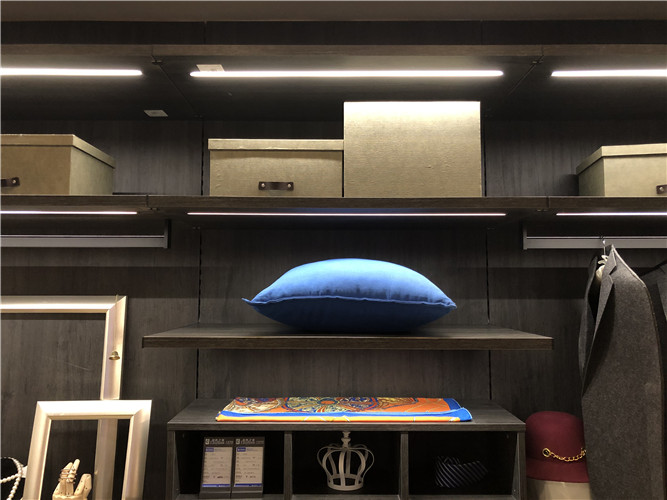

This items can be installed in wardrobe, cabinet, shelf etc. It is recessed mounted and the cutout is W13 xH11mm.

We are able to make this model with built in hand wave on/off sensor.

Application
