SPECIFICATIONS |
|
Product name: |

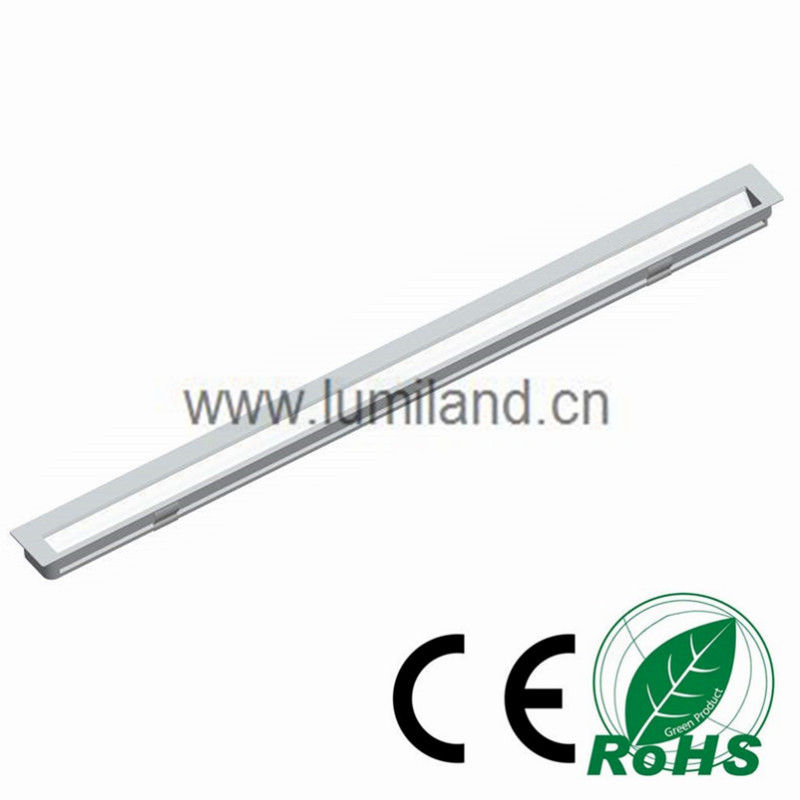

LED Linear Strip Light |
Art. Number: |
31117 (Customized lengths) |
Voltage: |
12V DC |
Wattage: |
12W/m |
LED QTY and Type: |
120pcs 2835LED/m. Every 3pccs(25mm) can be cut. |
Luminous Flux(lm) |
720lm/m |
Size: (mm) |
L (customized)xW22xH11.5mm |
Cutout:(mm) |
(L-5) x W 20 x H11mm |
Beam Angle: |
120 Degree |
Color Rendering Index: |
>80 |
LED Color Temperature: |
Warm White 3000K /Neutral White 4000K/ Cool White 6500K |
Material: |
Aluminum, PC |
Finish: |
Silver, Black |
IP rated: |
IP20 |
Certificate: |
CE, RoHS |
LED Lifetime: |
30,000 Hours |
Cable: |
1.5m 24# AWG cable and 91505-MP |
Requires drivers: |
Yes |
Sensor Mode: |
N/A |
Detection range: |
N/A |
Package Includes: |
Installation bracket and 2pcs screws and installation manual |

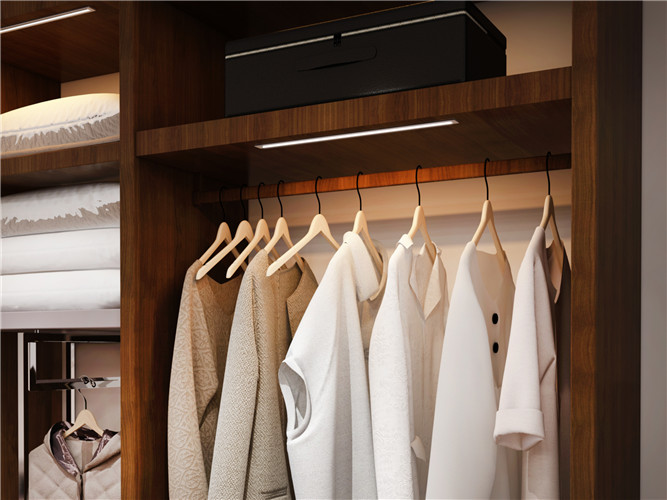

This items can be installed in wardrobe, cabinet, shelf and it is with an angle shining inside which is anti vertigo. It is recessed mounted and the cutout is W20 xH11mm.
