SPECIFICATIONS

Product name:

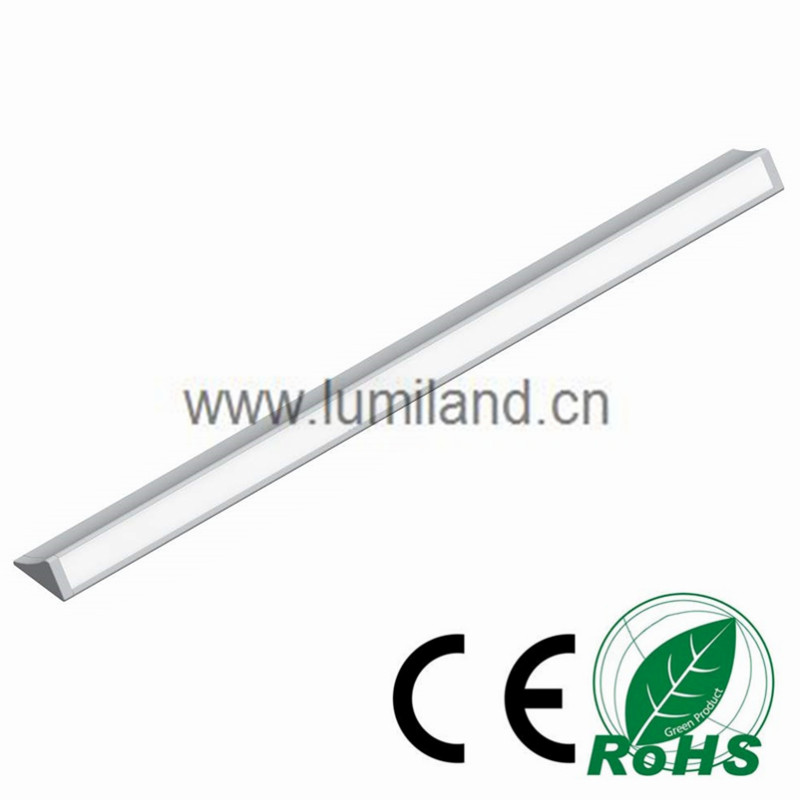

LED Linear Strip Light

Art. Number:

31115 (Customized lengths)

Voltage:

12V DC

Wattage:

12W/m

LED QTY and Type:

120pcs 2835LED/m. Every 3pccs(25mm) can be cut.

Luminous Flux(lm)

720lm/m

Size: (mm)

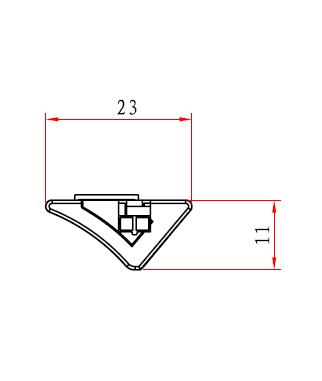

L (customized)xW23xH11mm

Cutout:(mm)

N/A . Surface mounted

Beam Angle:

120 Degree

Color Rendering Index:

>80

LED Color Temperature:

Warm White 3000K /Neutral White 4000K/ Cool White 6500K

Material:

Aluminum, PC

Finish:

Silver, Black

IP rated:

IP20

Certificate:

CE, RoHS

LED Lifetime:

30,000 Hours

Cable:

1.5m 24# AWG cable and 91505-MP

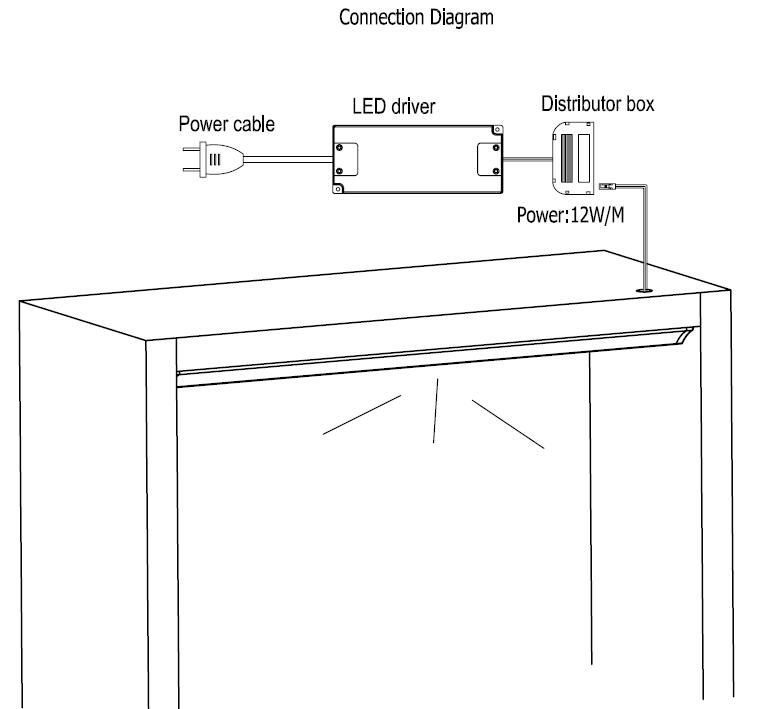

Requires drivers:

Yes

Sensor Mode:

N/A

Detection range:

N/A

Package Includes:

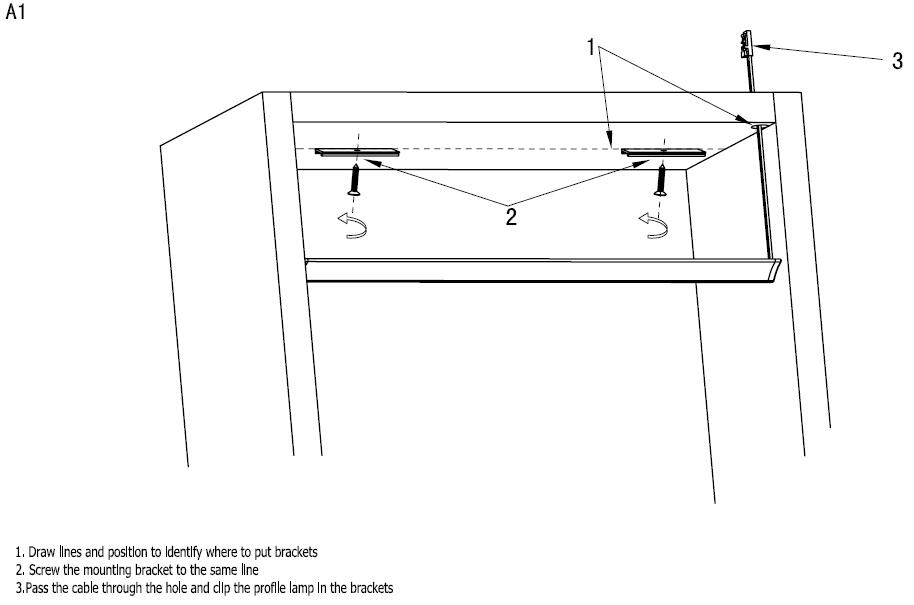

Installation bracket and 2pcs screws and installation manual
