SPECIFICATIONS

Product name:

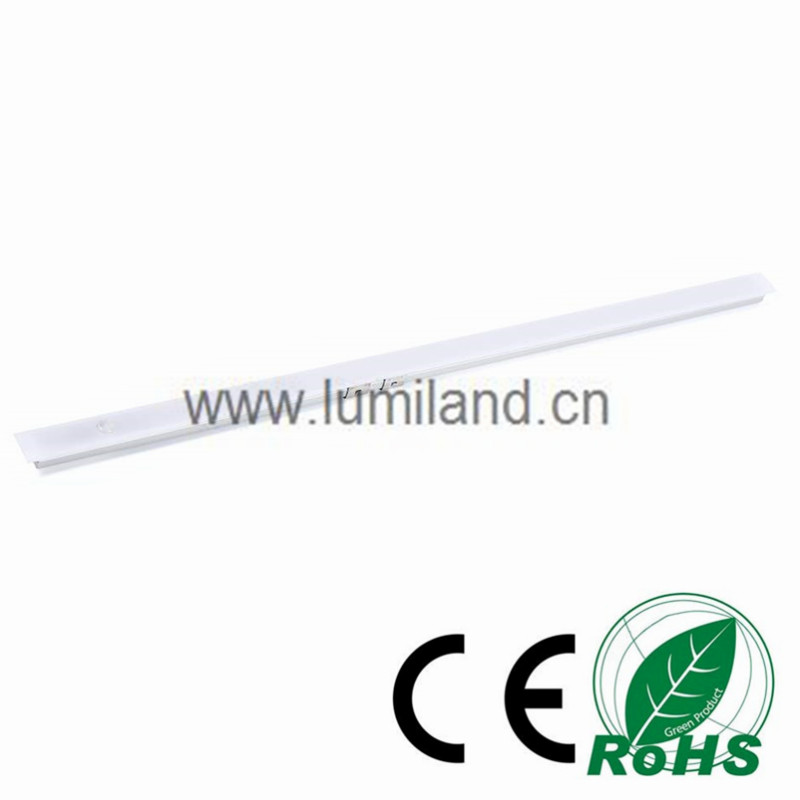

LED Linear Strip Light with PIR Sensor

Art. Number:

31018P (Customized lengths)

Voltage:

12V DC

Wattage:

12W/m

LED QTY and Type:

120pcs 2835LED/m. Every 3pccs(25mm) can be cut.

Luminous Flux(lm)

720lm/m

Size: (mm)

L (customized)xW19xH11.2mm

Cutout:(mm)

(L-10) x W16 x H10.5mm

Beam Angle:

120 Degree

Color Rendering Index:

>80

LED Color Temperature:

Warm White 3000K /Neutral White 4000K/ Cool White 6500K

Material:

Aluminum, PC

Finish:

Silver

IP rated:

IP20

Certificate:

CE, RoHS

LED Lifetime:

30,000 Hours

Cable:

1.5m 24# AWG cable and 91505-MP

Requires drivers:

Yes

Sensor Mode:

PIR Sensor / Delay time 30S

Detection range:

1-3m

Package Includes:

Installation bracket and 2pcs screws and installation manual
