SPECIFICATIONS

Product name:

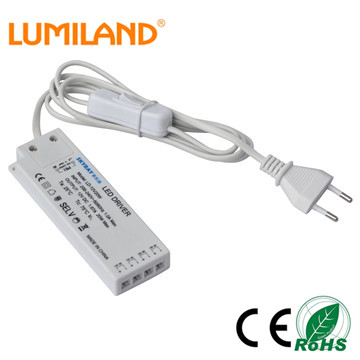

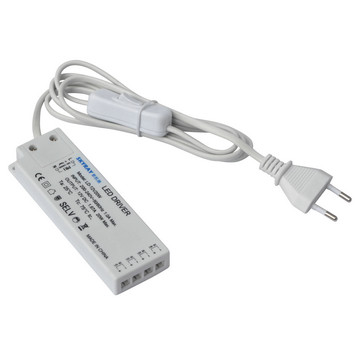

LED constant voltage driver with built in connection port

Art. Number:

LD-12V20W / LD-24V20W

Input voltage:

200-240V ~ 50/60Hz

Output current:

1670mA/835mA

Output voltage:

12V DC/24V DC

Power:

20W

Ambient Temperature:

25°C

Case Temperature:

75°C

Insulation Class:

Class 2

Over temperature protection:

Yes

Short circuit protection:

Yes

Efficiency:

>80%

No load power consumption:

<0.3W

Power Factor:

≥0.5

IP rated:

IP20

Dimension(L*W*H):

129x41x16mm

Certification:

CE/EMC/LVD/ROHS
