SPECIFICATIONS

Product name:

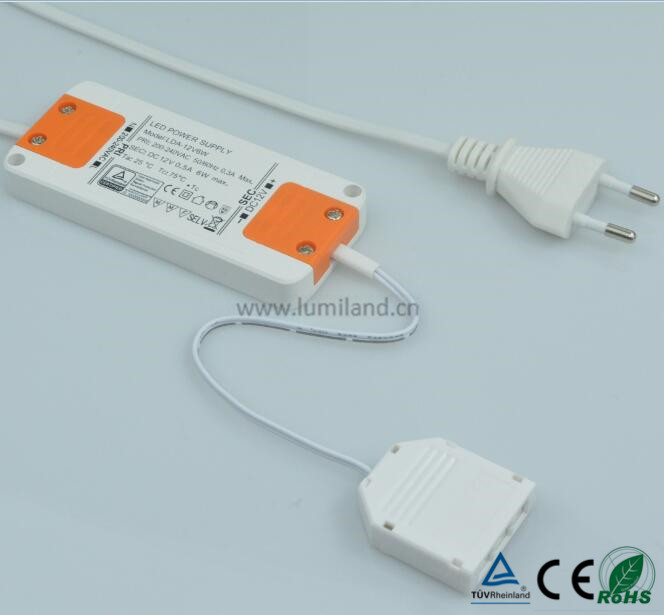

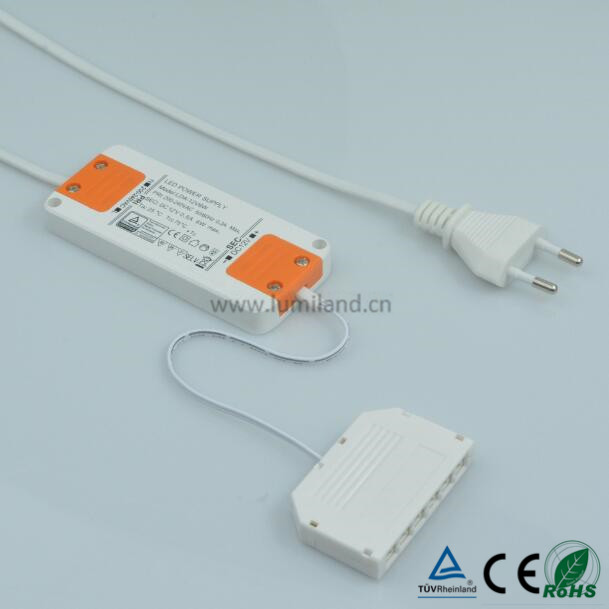

LED constant voltage driver

Art. Number:

LDA-12V6W / LDA-24V6W

Input voltage:

200-240V ~ 50Hz

Output current:

500mA/250mA

Output voltage:

12V DC/24V DC

Power:

6W

Ambient Temperature:

25°C

Case Temperature:

75°C

Insulation Class:

Class 2

Over temperature protection:

Yes

Short circuit protection:

Yes

Efficiency:

No load power consumption:

Power Factor:

>0.5

IP rated:

IP20

Dimension(L*W*H):

106x46x11.5mm

Certification:

TUV/CE/EMC/LVD/ROHS
